Powder Packaging Machine Technical Upgrade: ROTYPACK Sets New Benchmarks for Powder Packaging Production in European and American Markets

In the global processing fields covering meal replacement food, pharmaceutical powder, ultrafine chemical raw materials and new energy lithium battery powder, traditional powder packaging equipment is constantly troubled by prevalent industry problems. Such problems contain obvious measurement errors, heavy dust emission, frequent halts resulting from material blockage, complex parameter setting during product changeover and poor linkage with production lines. These problems result in material wastage and risks against environmental compliance, and cannot satisfy rigorous hygiene specifications and flexible production needs put forward by European and American markets. Shanghai Rotypack Intelligent Equipment breaks conventional technical restrictions within the industry through independently developed core structural designs. The equipment carries out all-round improvements in five aspects including metering, sealing, sanitation, maintenance and full production line matching, and supplies packaging solutions with steady long-term operation for manufacturers based overseas.

This device is fitted with a full-servo closed-loop screw metering system. It applies a three-speed feeding mode combining high-speed and low-speed feeding, alongside a real-time dynamic density compensation algorithm. The system can modify feeding parameters automatically when dealing with powder that easily absorbs moisture, features ultra-fine lightweight texture or tends to agglomerate, restricting metering error within ±0.1%. This parameter sits outside the regular error scope of ±0.3% to ±0.5% adopted by conventional packaging devices, which helps reduce material wastage in mass-scale manufacturing. The material hopper comes with Teflon anti-adhesion coating and an adaptive arch-breaking stirring component to stop powder bridging and clogging. The running time without breakdown increases by 60% relative to regular machines, which reduces the frequency of production line stoppages.

The dust-proof and hygienic design complies with EU CE and US FDA food hygiene standards. The fully enclosed main body works with a telescopic bottom filling structure, which inserts the feeding pipe deep into packaging bags during filling. Equipped with a HEPA negative pressure dust removal module, it achieves a dust collection rate of 99.5% to avoid workshop dust and cross contamination. Parts in contact with materials are made of 316L stainless steel with surface roughness Ra ≤0.8μm. The whole machine supports IP65 water washing for cleaning. ATEX explosion-proof electrical configurations are available for pharmaceutical and anti-corrosion chemical scenarios to satisfy safety requirements of chemical plants in Europe and America.

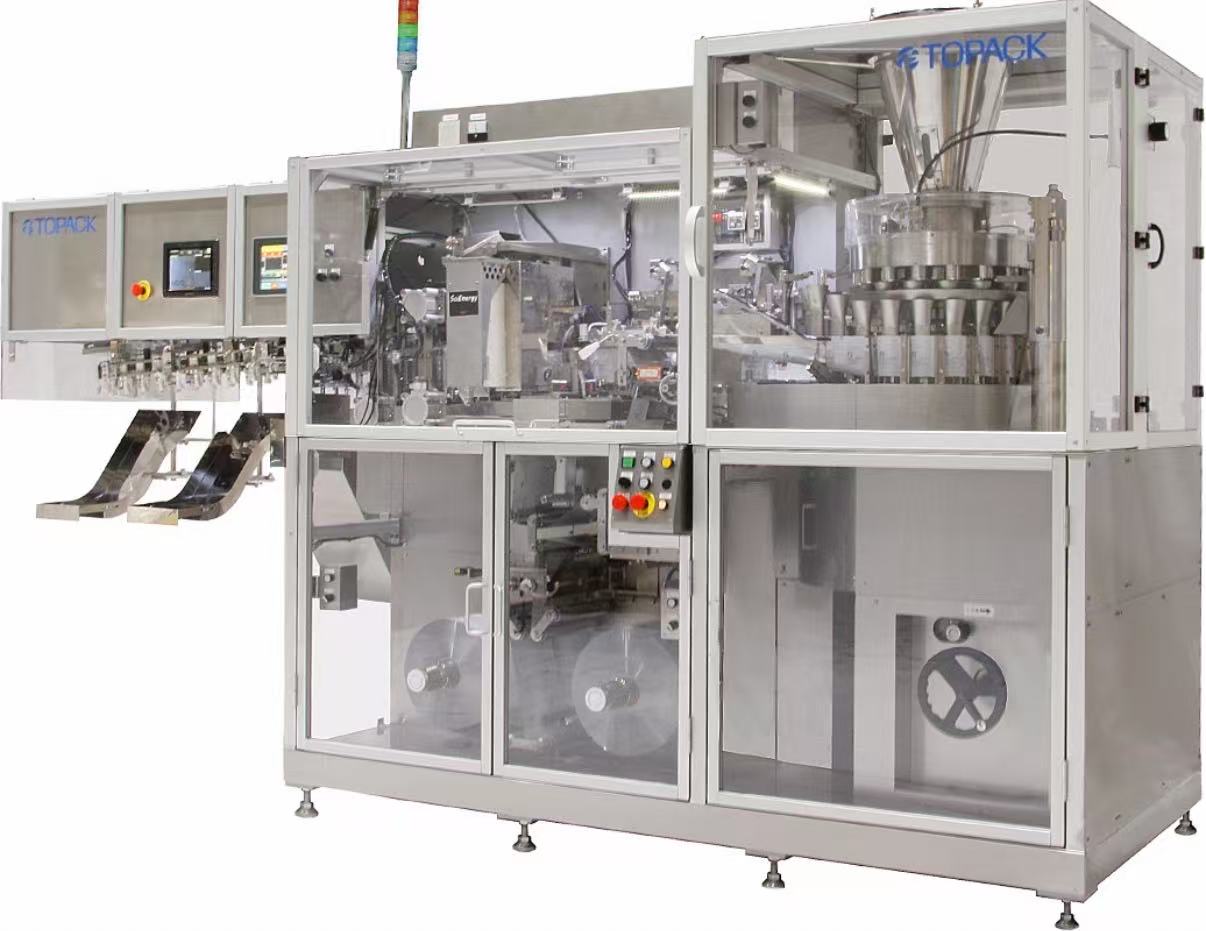

Its modular tool-free quick disassembly structure serves as a distinctive feature. Operators can detach and replace screws, hoppers and sealing assemblies manually. Material cleaning and parameter adjustment take only 15 minutes when switching between different powder products, much shorter than over one hour required by traditional machines. This fits the small-batch and multi-SKU order mode adopted by many European and American brands. Driven by Siemens servo motors, the machine maintains a positioning accuracy of ±0.1mm during bag cutting, sealing and film feeding. It processes stand-up pouches, zipper bags and special-shaped bags with integrated forming and sealing. The sealing process with powder clamping prevention keeps powder away from oxidation and dampness. An online nitrogen filling and air exhausting unit can be integrated to extend the shelf life of powder products.

Backed by technical accumulation from participating in the formulation of two industrial standards for packaging equipment, this powder packaging machine connects seamlessly with upstream feeding and conveying units, online metal detection and inspection devices, as well as downstream case packing and palletizing systems to form a complete intelligent production line. It supports remote maintenance and cloud upload of production data to match digital management systems of overseas smart factories. Unlike homogeneous packaging devices on the market that only focus on single filling functions, Rotypack optimizes the whole production chain with a complete production line design concept, creating clear edges in equipment durability, compliance adaptability and long-term maintenance costs. The equipment has been exported in bulk to multiple countries and added to qualified supplier lists of overseas enterprises, serving as a viable option for domestic packaging machinery to replace imported equipment in global markets.
