Automatic Pouch Filling and Sealing Machines Meet Flexible Multi-category Production Needs for Overseas Markets

When food and daily chemical processing enterprises based overseas expand production capacity, many factories select basic types of pouch filling and sealing equipment. Such machinery features fixed mechanical structures, requiring disassembly of numerous accessories to switch pouch types. One single machine can only process materials of one single form. Mechanical cam transmission creates positioning deviations, bringing frequent issues such as wrinkled seals and material overflow under high-speed operation. Separate and closed control systems cannot connect with digital management platforms of factories, failing to match food production compliance standards of various regions.

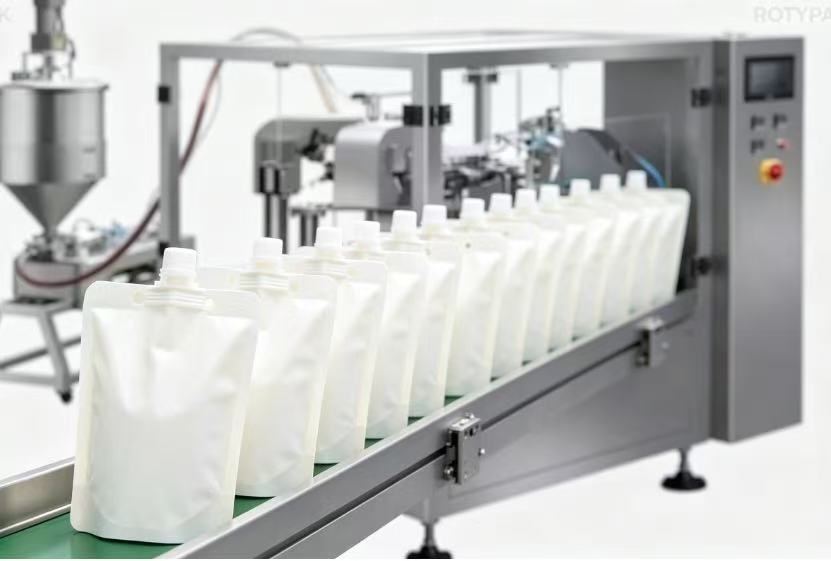

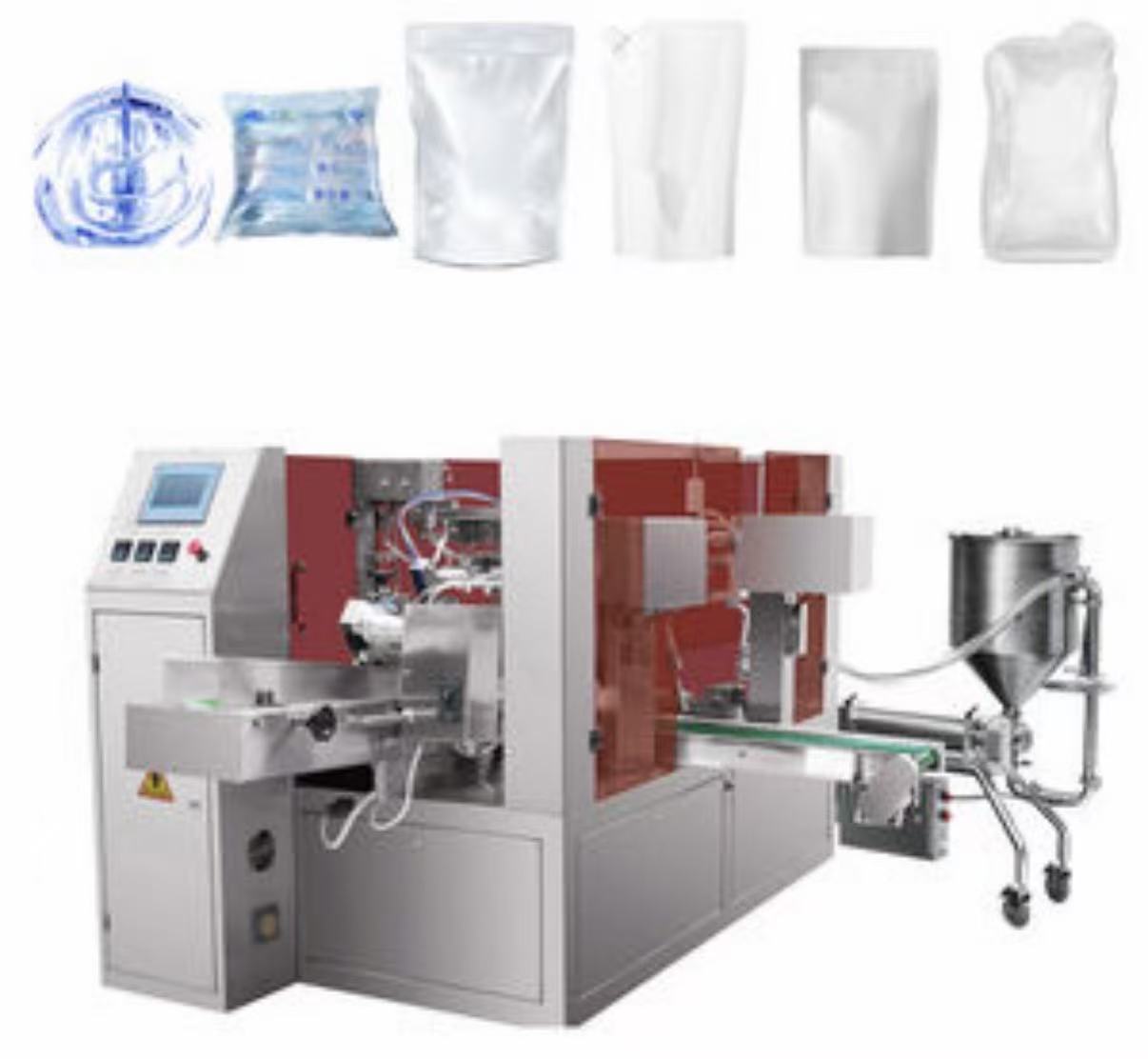

ROTYPACK under Shanghai Rutian Intelligent Equipment independently develops automatic pouch filling and sealing machines. The whole machine adopts fully independent servo driving frameworks instead of traditional connecting rod and cam transmission, with positioning deviation controlled within ±0.2mm. The equipment supports free switching of pouches ranging from 90mm to 500mm, compatible with liquids, creams and granules. Operators only adjust parameters on the touch screen to switch production materials without disassembling mechanical components.

Dual-layer water-cooled heat sealing modules are equipped to stop leakage caused by high temperatures. All parts touching materials are made of 304 stainless steel, complying with FDA standards for food contact materials. Data connection ports are reserved on the machine body to upload data including output, malfunctions and metering values to central control systems of factories. Single-output and dual-output production modes are available, covering output rates from 25 to 80 pouches per minute.

Different from split simple equipment, this filling and sealing machine integrates pouch picking, filling, air exhausting and sealing into one set of working procedures to cut manual transfer steps. The machinery fits non-stop continuous production of overseas factories, lowering packaging material waste and labor input for processing plants and matching production demands of diversified export orders.
