RJ-3.0S

High-Efficiency Angled Spout Packaging

Back

Introduction

◆ Precision Compatibility:

Supports bag sizes: 90mm×130mm to 150mm×350mm;

Specifically engineered for angled spout filling of liquids/semi-solids (e.g., sauces, lubricants).



◆ High-Speed Stability:

Continuous output: 60-90 bags/minute;

11.5-meter extended frame ensures precision forming for large-capacity angled spout pouches.

Packable Bag Type

RJ-3.0S

Equipment Parameters Introduction

Detail Display

Optional Accessories

Packaging Cases

Industry Applications

Contact Us

Equipment Parameters Introduction

Model

RJ-3.0S

Minimum Bag Size

150mm*200mm

Maximum Bag Size

300mm*450mm

Packaging Speed

25-120bags/min

Machine dimensions

11500mm*1450mm*1600mm

Total Weight

6500kg

Noise Level

<75dB

Relative Humidity

Below 85% (no condensation state)

Voltage

AC380V, 50Hz

Power

12kW

Working Air Pressure

0.8MPa

Gas consumption

0.7m³/min

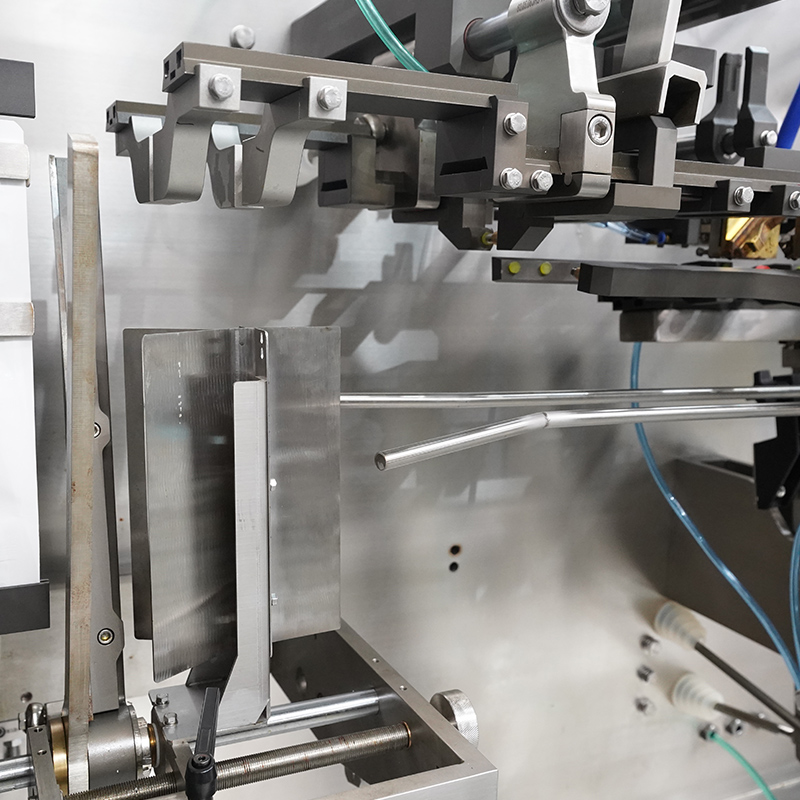

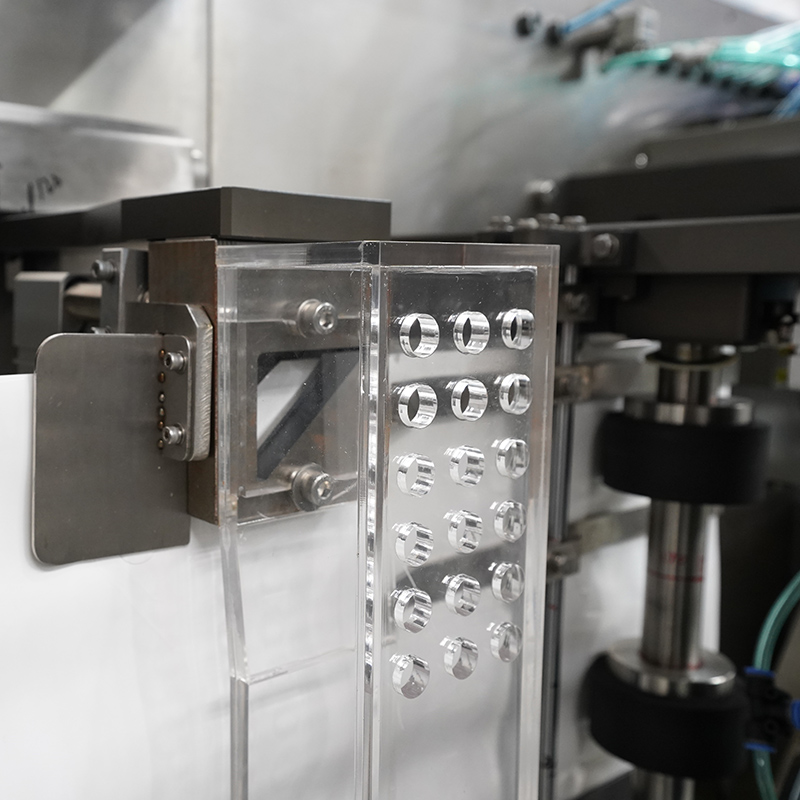

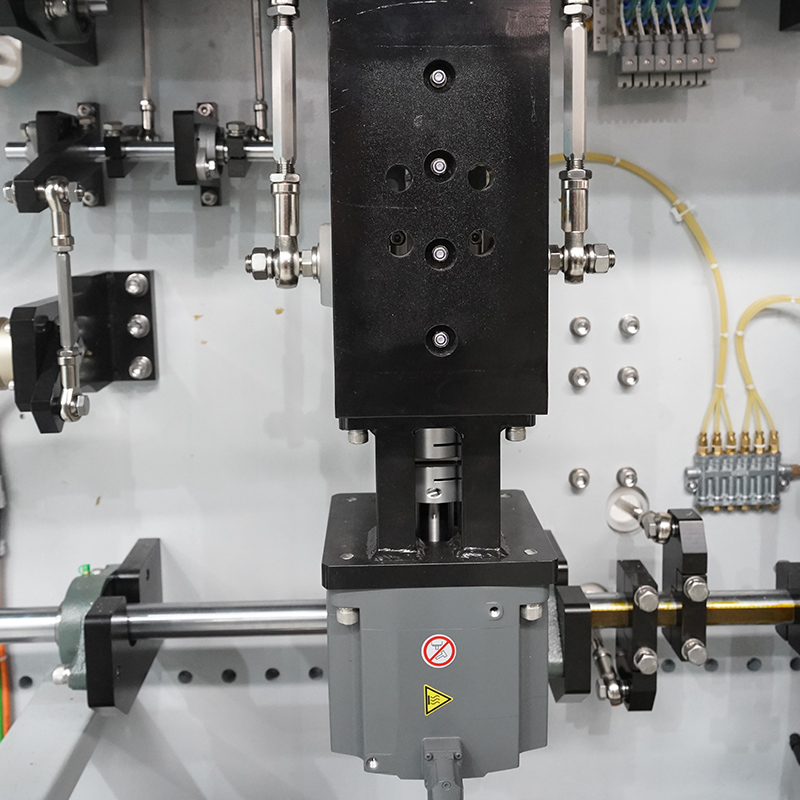

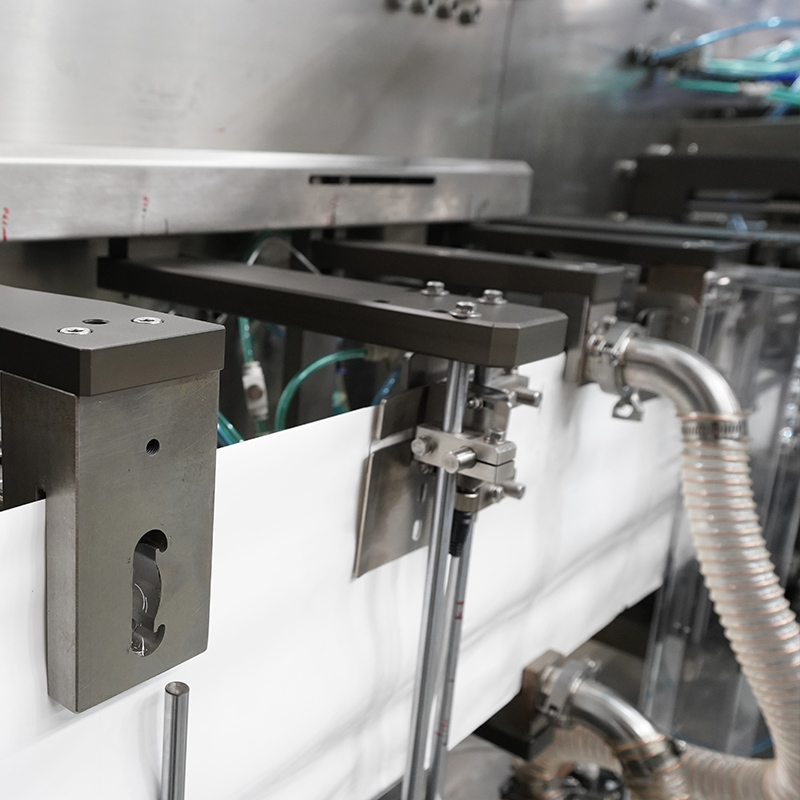

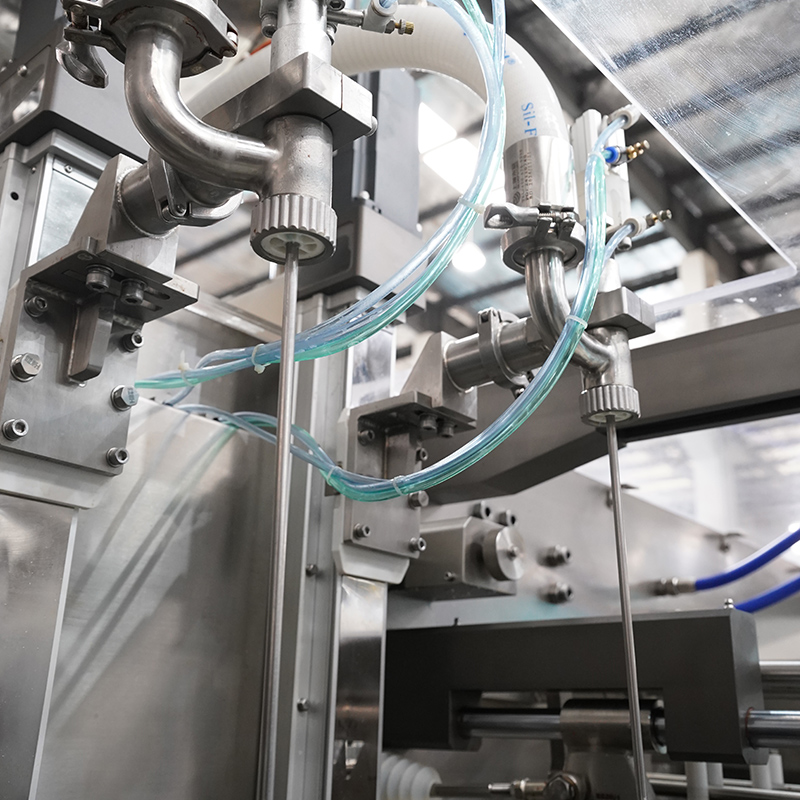

Detail Display

Optional Device

  • Combination scale
  • Ramp conveyor
  • Ceramic sealless pump
  • Granule feeding system
  • Cans
  • Powder head
  • Servo powder feeding system
  • Z type feeder
