Full Servo Stand-up Pouch Packaging Machine, Establish Updated Compliance Packaging Specifications with Flexible Production for European and American Markets

Demand for stand up pouch packaging machines keeps growing across the global health food, pet nutrition and household cleaning & care sectors. Conventional equipment on the market mostly adopts pneumatic cam linkage driving structure, which comes with common drawbacks including incomplete pouch bottom opening, insecure zipper sealing and lengthy parameter adjustment during product format changeovers. These issues bring about increased material wastage, meanwhile failing to comply with strict regulations on food-contact materials issued by the European Union and batch traceability requirements set forth by the FDA.

Shanghai Rutian Intelligent Equipment releases modular full servo stand-up pouch packaging system, addressing key pain points of small-batch diversified production and high-sanitation manufacturing, and providing differentiated automatic packaging solutions.

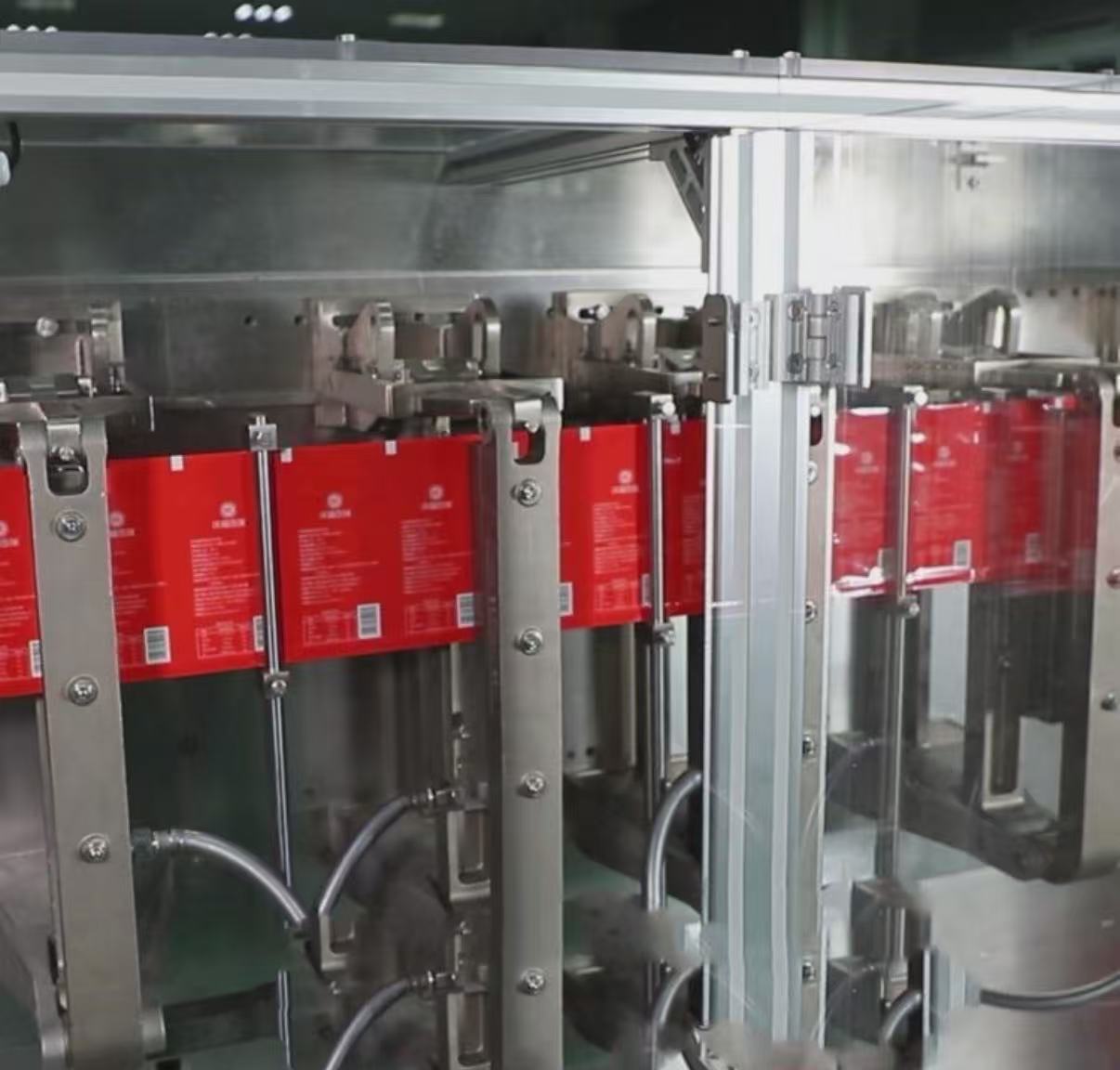

The machine applies multi-axis independent servo coordination framework. Motion sequences for pouch picking, bottom spreading, filling and sealing stations are precisely adjustable. Positioning deviation of pouch formats is controlled within ±0.1mm, compatible with stand-up pouches fitted with zippers, spouts, viewing windows and biodegradable composite materials.The heat sealing unit is equipped with constant temperature and pressure adaptive module, enabling flat and airtight sealing for thin PLA films and thickened aluminum foil pouches to avoid liquid leakage and sealing edge warping.Dust suppression negative pressure filling structure for powder materials and anti-drip cut-off valve for liquid ingredients maintain measuring accuracy within ±0.3g for powder and ±0.5ml for liquid, cutting unnecessary loss of high-value raw materials.

Material contact parts of the whole machine are constructed with 316L mirror finished stainless steel without dead spaces for dirt accumulation, supporting CIP quick disassembly and cleaning. Mechanical structure complies with GMP and CE certification criteria.Tool-free quick change fixture system allows format switching for stand-up pouches with width ranging from 50mm to 300mm within 12 minutes, outperforming manual screw adjustment mode applied on traditional packaging equipment.


Linked intelligent vision system and multiple sensors detect pouch shortage, unsuccessful pouch opening and abnormal sealing conditions, with automatic reset and machine halt functions to sustain uninterrupted production. Mean Time Between Failures (MTBF) exceeds 8500 working hours.

The multi-language industrial touch screen stores over 30 sets of pre-set process formulas. Real-time data including output volume, product pass rate and operating parameters can be saved and exported, matching digital traceability management systems adopted by factories in Europe and America.This equipment can be configured with multi-head weigher, screw powder filler, piston pump filling unit, inline coding device and vacuum auxiliary modules flexibly, with both standalone machine and complete production line solutions available for delivery.English version technical manuals, remote after-sales maintenance and localized spare parts supply services are provided to assist overseas clients in deploying automatic stand-up pouch production lines featuring high efficiency, low consumption and regulatory compliance.
